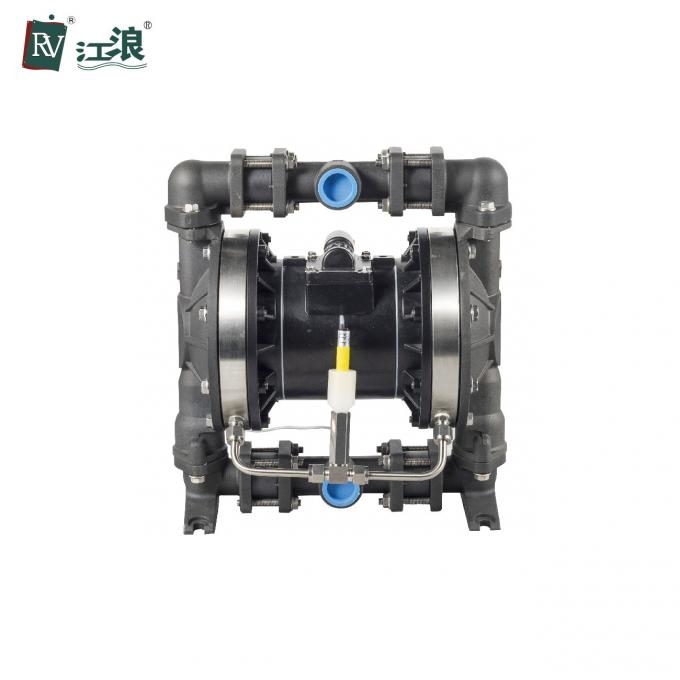

2" inch Aluminum Air Operated Diaphragm Pump With Leak Detective Device
For traditional pump, when diaphragm broken, it’s hard to be found on time, air operated diaphragm pump usually continue working, fluid will leak into center block, it’ll damage inner spare parts, at last the whole air operated diaphragm pump will be damaged.
RV series air operated diaphragm pump with diaphragm failure protection, with double diaphragms, with alarm devices & detector devices, can alarm as soon as rubber diaphragm broken, air operated diaphragm pump will stop working automatically as once.
It’s great safety and protection for air operated diaphragm pump. It also reduce maintains cost, end-user just need to replace broken diaphragm, rather than replace a whole pump.
| Place of Origin | Shanghai, China |
| Power Source | Pneumtic |
| Structure | Air Operated Diaphragm Pump |
| Power Driven | Compressed air |
| Max Permitted Grain | 0.2 in(5mm) |
| Certification | CE, ISO: 9001 |
| Air Inlet Size | 1/2 in.npt(f) |
| Wetted End | Aluminum |
| Fluid Inlet Size | 1 in. |
| Fluid Outlet Size | 1 in. |
| Installation | 340×230×440mm |
Main Applications:
1. Chemical industry: Acids, alkalis, solvents, suspended solids, decentralized system.
2. Petrochemical industry: crude oil, heavy oil, grease, mud, sludge, etc.
3. Coatings Industry: resins, solvents, coloring agent, paint, etc.
4. Cosmetic industry: detergent, shampoo, lotion, emulsion, camphor ice, surface active agents.
5. Ceramics: mud, slurry pottery, lime milk, clay slurry.
6. Mining industry: coal slurry, magma, mud, mortar and explosives, lubricant, etc.
7. Water treatment: lime milk, soft sediments, sewage, chemicals, waste water.
8. The food industry: liquid semi-solid, chocolate, salt water, vinegar, syrup, vegetable oil, soybean oil, honey, animal blood.
9. Beverage industry: yeast, sugar syrup, concentrations, gas-liquid mixture, wine, fruit juice, corn pulp, etc.
