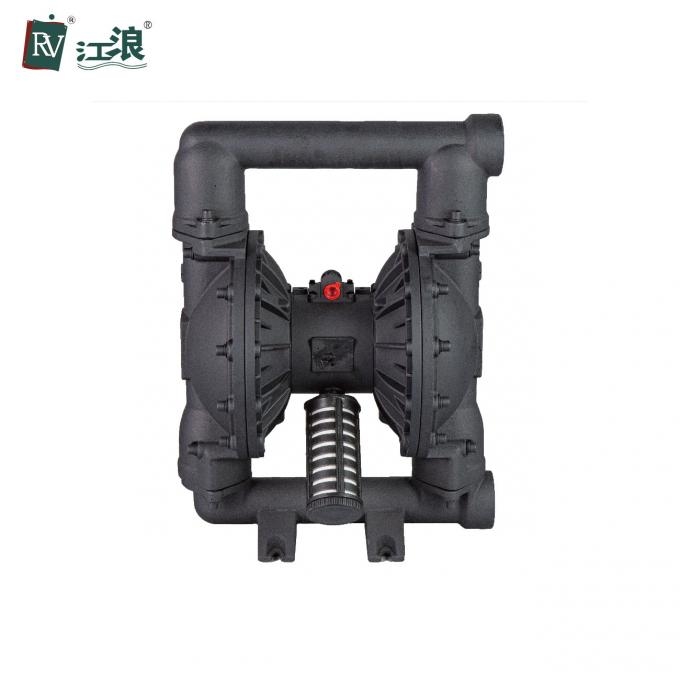

Waste Water Pneumatic Diaphragm Pump Mining 2" Ductile Iron
RV air operated diaphragm pump are available with many flow rates and sizes, allowing you to vary the flow outlet and discharge pressure. Our air diaphragm pump can run as slow as 0.26 gallons (1 liter) per minute and up to 275 gallons (1079 liters) per minute for larger pump sizes. Adjust fluid pressure up to 120 p.si. (8.4 bar) by using an air filter / regulator and a needle valve.
Each air operated diaphragm pump can be customized for your fluid transfer needs. Choose from a wide range of air operated diaphragm pump materials, casing options and accessories. Find metal or plastic fluid sections and housings that can handle any fluid, including corrosives and abrasive.
| Max Working Pressure | 120 psi(0.84Mpa, 8.4bar) |
| Max Flow Rate | 150 gpm ( 570 lpm ) |
| Max Reciprocating Speed | 145 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.24 in ( 6 mm) |
| Max Air Consumption | 140scfm ( 70L/s ) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 2 in. |
| Fluid Outlet Size | 2 in. |
| Net Weight | Ductile Iron 57.5kg |
| 1 | Ceramic material for main valve and reversing valve ensures longer life, more stability and working in dirty compressed air ( most occasions, air filter become option). |
| 2 | Without ice with the muffler. Innovative design with the exhaust space of the air operated diaphragm pump, some of muffler inside, this makes the air outlet smooth.) |
| 3 | Outward parts of the air operated diaphragm pump are all die casted aluminum and special environment-protected painting, makes the pump with elegant appearance. |
| 4 | Large flow capacity. Innovative design of chamber maximizes the flow capacity. Seamless adjustment with inlet valve, or even close the valve, without damaging the pump. |
| 5 | Low consumption compressed air. Innovative design of the air flow system, minimizes the usage of compressed air to achieve maximum performance. |
| 6 | Light and small size, movable. |
| 7 | Modularization of main valve and air motor. No broken, easy to disassemble and repair. |
Packing & Shipping:
DIAPHRAGM OPTIONS
PTFE
Santoprene
Buna-N
Hytrel
Viton
Neoprene
VERSATILITY
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time for air operated diaphragm pump?
A: Depend on the quantity.
4. Q: What about package for air operated diaphragm pump?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty for air operated diaphragm pump?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need
ration during operation.
