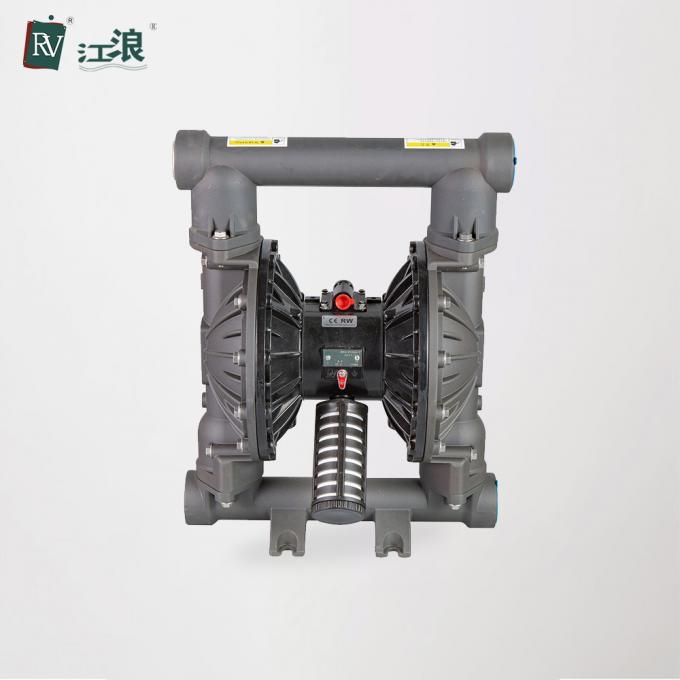

2 inch Aluminum Alloy Wholesale Air Driven Diaphragm Pump
Air Driven Double Diaphragm Pump Installation:
1. Be sure the mounting can support the weight of the pump, hoses, and accessories, as well as the stress during operation progress.
2. During installation, make sure that the pump has been fixed with bolts on the mounting feet.
3. In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the pump.
4. While fastening the pump, rubber pad can be padded to reduce the noise and vibration during operation.
| Max Working Pressure | 120 psi ( 0.84 Mpa, 8.4 bar ) |
| Max Flow Rate | 150 gpm (570 lpm) |
| Max Reciprocating Speed | 145 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.24 in (6mm) |
| Max Air Consumption | 140 scfm ( 70 L/s ) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 2 in. |
| Fluid Outlet Size | 2 in |
| Model | Pipe Size | Max. Air Pressure | Wetted Parts Material | Valve Seat | Ball Material | Connection |
| RVA-F3311-T | 2” inch | 8.4 bar | Aluminum | Stainless Steel | PTFE | NPT THREAD |
Packing & Shipping:
Our service
Air diaphragm pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pump’s body.
Company Introduction:
Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.
