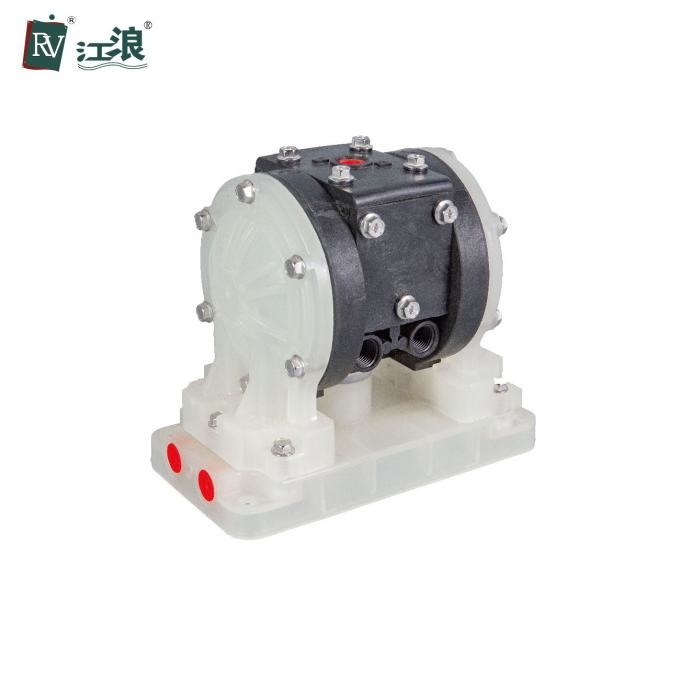

1/4 inch PVDF Air Driven Diaphragm Pump for Strong Acid Chemicals
Air Driven Double Diaphragm Pump Specification:
| Brand | RV |
| Material | PVDF |
| Color | White |
| Function | Fluid Handling, Pump Industrial Applications |
| Feature | 1/4 inch end-porting, Spring check valves for superior priming in any mounting configuration |
| Usage | Wastewater chemical supply, Laundry chemicals and detergents handled |
Air Driven Double Diaphragm Pump Description:
| A | Simple structure,reliable connection ,easy assembly and disassembly. |
| B | Modular design,low air consumption,no dead spots and no need lubrication. |
| C | Enhanced the chamber strength,has long_term durability. |
| D | Bolts connection design,good seal. |
| E | Adopt special grinding machine to process in high roundness and good seal. |
| F | Accurately calculatethe diaphragm moving distance to reduce the force to diaphragm. |
| Max Working Pressure | 100 psi(0.7Mpa, 7bar) |
| Max Flow Rate | 5.0 gpm(19lpm) |
| Max Reciprocating Speed | 320 cpm |
| Max Suction Height (Dry Sucking) | 3m |
| Max Permitted Grain | 0.06 in(1.5mm) |
| Max Air Consumption | 7.0scfm(3.5L/s) |
| Air Inlet Size | 1/4 in.npt(f) |
| Air Outlet Size | 1/4 in.npt(f) |
| Fluid Inlet Size | 1/4 in. |
| Fluid Outlet Size | 1/4 in. |
| Net Weight | PP pump 1.1kg; PVDF pump 1.5kg |
Packing & Shipping:
Our service
* All of the enquiry will be replied within 24 working hours
* Professional air diaphragm pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service
Company Introduction:
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air diaphragm pump and control valves, including: Air Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Air Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
The air diaphragm pump and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time for air diaphragm pump?
A: Depend on the quantity.
4. Q: What about package for air diaphragm pump?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty for air diaphragm pump?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
