1/2" Aluminum Low Flow Rate Low Pressure Air Driven Double Diaphragm Pump with NBR Diaphragm
Air Driven Double Diaphragm Pump Application:
RV air driven double diaphragm pumps use compressed air as power source, and it is the most advanced type of diaphragm pumps in market for the moment. It adopts three-way air pilot valve to achieve real no dead stop and faster reversing. It is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.

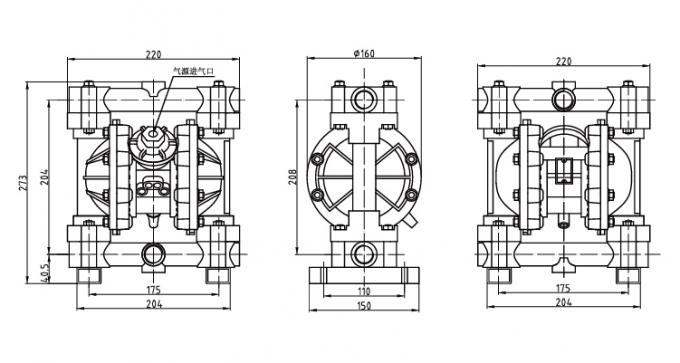

Outline Dimension Drawing
| Max Discharge Pressure | 100 psi ( 0.7Mpa, 7bar ) |
| Max Capacity | 15 gpm ( 57lpm ) |
| Max Reciprocating Speed | 400 cpm |
| Power | Pnuematic |
| Max Permitted Grain | 3/32 in ( 2.5mm ) |
| Advantages: | Explosion-proof |
| Air Inlet Size | 1/4 in.npt (f) |
| Air Outlet Size | 3/8 in.npt (f) |
| Fluid Inlet Size | 3/4 in. |
| Fluid Outlet Size | 3/4 in. |
| Net Weight | 4.8kg |
Packing & Shipping:
Our service
* All of the enquiry will be replied within 24 working hours
* Professional air diaphragm pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What're your payments ?
A: T/T,Western Union,L/C etc.
3. Q: What about the package ?
A: Standard export plywood case or carton.
4. Q: How long is the warranty ?
A: According to international standards, products in standard operation is 1 year,except wearable parts.
5. Q: The use of air diaphragm pump have?
A: air diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
Air diaphragm pump can suck the paint, pigment, glue and adhesive etc.
Air diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
Air diaphragm pump can suck various toxin and flammable or volatility liquid etc.
Air diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.
6. Q: How air diaphragm pump quality and service?
A: Our air diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
