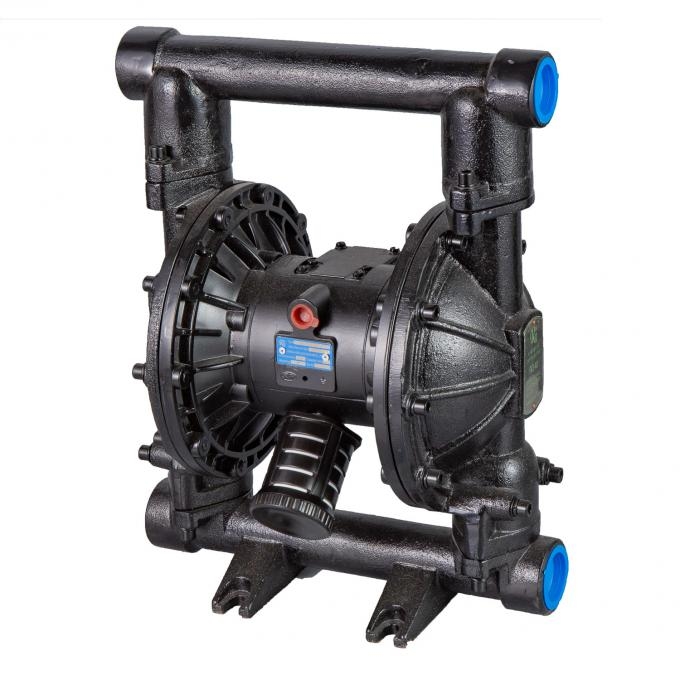

2 inch Ductile Iron Air Driven Diaphragm Pump for Water Treatment
Air Driven Double Diaphragm Pump Applications:
Chemical industry: acid, alkali, solvent, suspended solids, dispersion system.
Petrochemical industry: heavy oil, grease, mud, sludge and so on.
Coating industry: resin, solvent, coloring agent, paint and so on.
Chemical industry: detergent, shampoo, lotion, emulsion, hand cream, surfactant.
Ceramics industry: mud, porcelain pulp, lime slurry, clay pulp.
Mining industry: coal slurry, magma, mud, mortar, lubricants and so on.
Water treatment: lime slurry, soft precipitates, sewage, chemicals, waste water.
Food industry: liquid semi-solid, chocolate, salt water, vinegar, syrup, vegetable oil, soybean oil, honey.
Beverage industry: yeast, syrup, concentrate, gas-liquid mixture, wine, fruit juice, corn pulp and so on.
Pharmaceutical industry: solvent, acid, alkali, plant extracts, ointment and other pharmaceutical materials liquid.
Paper industry: adhesives, resins, paints, inks, pigments, hydrogen peroxide and so on.
Electronic industry: solvent, plating solution, cleaning solution, nitric acid, waste acid, corrosive acid, polishing liquid.
Textile industry: dye chemicals, resins, plastics and so on.
| Max Working Pressure | 120 psi(0.84Mpa, 8.4bar) |
| Max Flow Rate | 150 gpm (570 lpm) |
| Max Reciprocating Speed | 145 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.24 in (6mm) |
| Max Air Consumption | 140 scfm ( 70L/s ) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 2 in. |
| Fluid Outlet Size | 2 in. |
| Net Weight | Ductile Iron 58 kg |
| Quantity (pieces) | 1-10 | 11-50 | 51-100 | ＞100
|
| Est. Time (days) | 3 | 5 | 10 | To be negotiated
|
Packing & Shipping:
Our service
Air diaphragm pump use a flexible diaphragm mounted on either side of the air diaphragm pump’s central chamber to air diaphragm pump fluids into and out of the air diaphragm pump’s body.
Company Introduction:
Jianglang's Cast Iron air diaphragm pump are constructed out of a special tough spheroidal graphite Iron, to withstand the toughest duty outdoors. They are primarily designed for use in underground mining atmospheres. All air diaphragm pumps have a ATEX approval. They employ a special version of the air valve system, so as to be compatible with mining regulations. All air diaphragm pump options are available, including the popular BunaN and Hytrel versions.
Skid mounting, inlet strainer bases and frames are all available. Applications include removal of underground water / drift water from mine sites, transfer of muck, slime and slurry and oil transfer and utility use.
Q1. Can I have a sample order for air diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time for air diaphragm pump?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air diaphragm pump order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6 :
1.The air diaphragm pump can suck the peanut,pickles,tomato slurry,red sausage,chocolate,hops and syrup etc.
2.The air diaphragm pump can suck the paint,pigment,glue and adhesive etc.
3.The air diaphragm pump can suck various glazed slurries of tile,porcelain,brick and chinaware etc.
4.The air diaphragm pump can suck various toxin and flammable or volatility liquid etc.
5.The air diaphragm pump can suck various strong acid,alkali and corrosive liquid etc.
