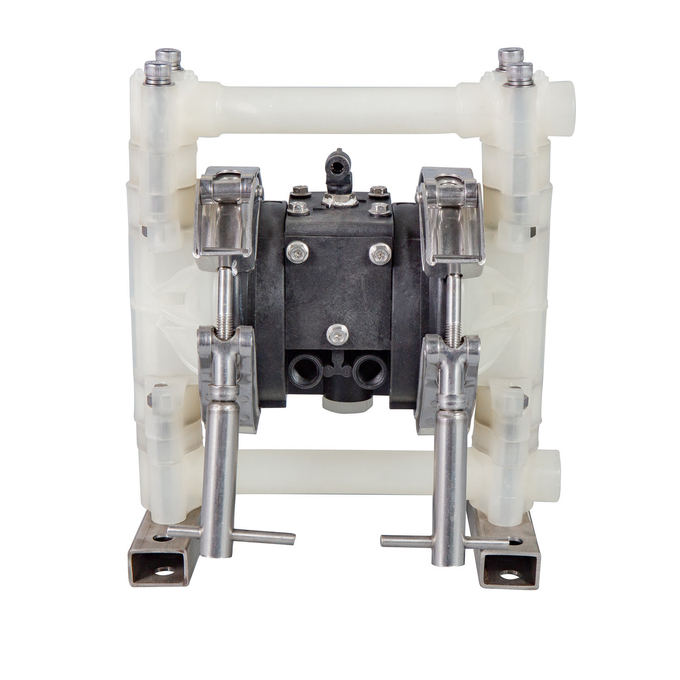

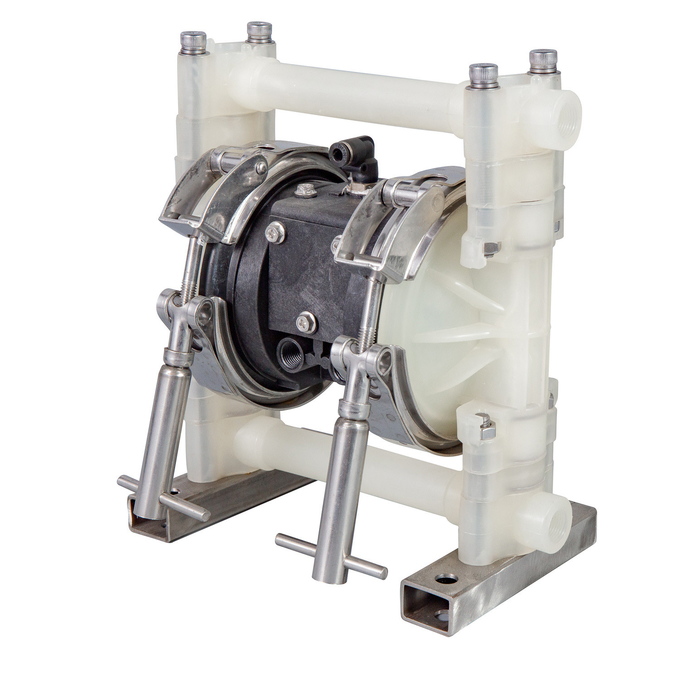

Industrial Plastic Low Pressure Air Operated Diaphragm Pump For Strong Acid
Air Operated Diaphragm Pump Advantages:
RV air operated diaphragm pumps are characterized by exceptional performance, power and strength, making them ideal for pumping liquids with high apparent viscosity even if containing suspended solids. The pneumatic system assures a safe air operated diaphragm pump running and it does not need lubricated air.
Self-priming dry capacity even with considerable suction head, fine tuning of speed without pressure loss and the possibility of dry operation without suffering damage mean that these pumps offer unrivalled versatility.
In addition, the huge choice of construction materials allows selection of optimum chemical compatibility with the fluid and/or environment without neglecting the temperature range. They are specifically designed for demanding applications with high humidity or in potentially explosive atmospheres (ATEX certification).
Air Operated Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free
| Type | RV10 |
| Inlet size | 3/8" |
| Outlet size | 3/8" |
| Air inlet size | 1/4" |
| Suction lift (dry) | 3m |
| Max. working pressure | 7bar ; 0.7MPa |
| Max. flow rate | 26.5 l/min(1.56m³/h) |
| Max. delivery lift | 70m |
| Max. grain diameter | 1.6mm |
| Weight | PP: 3kgs PVDF: 4kgs Acetal: 4kgs |
| Available body material | PP. Acetal. PVDF |
Company Introduction:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air operated diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Air Operated Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
Air Operated Diaphragm Pump and Control Valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for air operated diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.
Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
