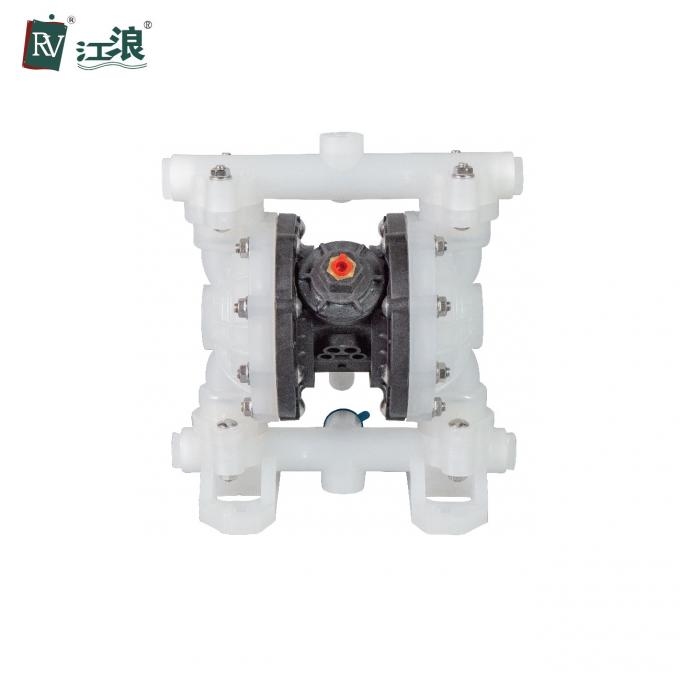

  • 1/2" Low Pressure Pneumatic Plastic Air Operated Diaphragm Pump For Water Treatment

    Air Operated Diaphragm Pump

    Engineered from a choice of plastics, RV air operated diaphragm pump is a cost-effective means of meeting the challenges presented by air operated diaphragm pump applications that demand a product-compatible pump. Pumping solvents, dyes and other specialist chemicals present no problems with the RV air operated diaphragm pump

    Also ideal to air operated diaphragm pump various acids and other chemicals where plastics offer maximum product compatibility.



    Application
    The air operated diaphragm pump are excellent drum pumps. For the emptying of barrels, containers,
    canisters and drums of all kind of chemicals such as acids or lye, air operated diaphragm pump is a very good alternative to a conventional rod drum pump.
    Air operated diaphragm pumps can pump corrosive, viscous and abrasive fluids with ease.

    Max Discharge Pressure 100 psi ( 0.7Mpa, 7bar )
    Max Capacity 15 gpm ( 57lpm )
    Max Reciprocating Speed 400 cpm
    Power Pnuematic
    Max Permitted Grain 3/32 in ( 2.5mm )
    Advantages: Explosion-proof
    Air Inlet Size 1/4 in.npt (f)
    Air Outlet Size 3/8 in.npt (f)
    Fluid Inlet Size 1/2 in.
    Fluid Outlet Size 1/2 in.
    Net Weight 4.8kg



    Air Operated Diaphragm Pump Application

    The air operated diaphragm pumps use compressed air as power source, and it is the most advanced type of air operated diaphragm pumps in market for the moment. It adopts three-way air pilot valve to achieve real no dead stop and faster reversing. It is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.

    Spraying And Cleaning

    Air Operated Diaphragm pumps are perfect for spraying paint, cleaning roofs and spraying conveyers / bottles for anti-static. These air operated diaphragm pump are suited for these types of applications due to their durability and the volume produced by each air operated diaphragm pump. The air operated diaphragm pump, combined with the power of an air compressor, allows cleaning chemicals, paints and other fluids to be dispensed at a constant rate.


    FAQ

    1. Q: Are you a factory or trading company?

    A: We are a factory.

    2. Q: What're your payments ?

    A: T/T,Western Union,L/C etc.

    3. Q: What about the package ?

    A: Standard export plywood case or carton.

    4. Q: How long is the warranty ?

    A: According to international standards, products in standard operation is 1 year,except wearable parts.

    5. Q: The use of air diaphragm pump have?

    A: air diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

    Air diaphragm pump can suck the paint, pigment, glue and adhesive etc.

    Air diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

    Air diaphragm pump can suck various toxin and flammable or volatility liquid etc.

    Air diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.

    6. Q: How air diaphragm pump quality and service?

    A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.

  • Specification
    • Type Air Operated Diaphragm Pump
    • Ratio 1 : 1
    • Maximum (gpm) 15
    • Maximum (lpm) 57
    • Displacement Per Cycle (Gallons) 0.04
    • Displacement Per Cycle (Liters) 0.15
    • Material of Diaphragm PTFE and Santoprene as backup
    • Pump Body Plastic (PP)
    • Weight 3.5 kg
    • Package 30.00cm*19.00cm*35.00cm
