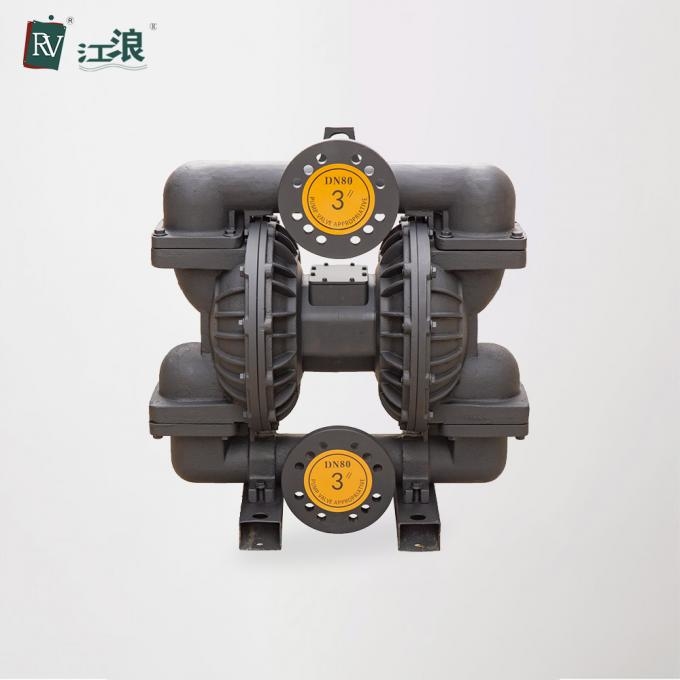

3 Inch Aodd Pump Assembly Douctile Iron PTFE Membrane
1. Because it is using air as power, the diaphragm pump does not heat and produce sparks; suitable for use in flammable and
explosive environment.
2. Use PTFE diaphragm, can be used for chemical properties relatively volatile liquid, corrosive medium.
3. Diaphragm Pump can pump particle liquid;
4. The liquid can be conveyed by diaphragm pump is wide, the viscosity from low to high, from corrosive liquid to viscous liquid.
| Max Working Pressure | 120 psi(0.84Mpa, 8.4bar) |
| Max Flow Rate | 270 gpm ( 1022lpm ) |
| Max Reciprocating Speed | 135 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.37 in ( 9.4mm) |
| Max Air Consumption | 180scfm(90L/s) |
| Air Inlet Size | 3/4 in.npt(f) |
| Air Outlet Size | 1 in.npt(f) |
| Fluid Inlet Size | 3 in. |
| Fluid Outlet Size | 3 in. |
| Net Weight | Ductile Iron 115kg |

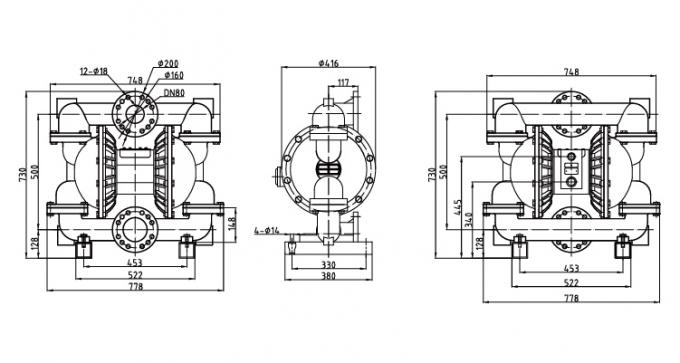

Exterior dimension drawing
Display
Packing & Shipping:
DIAPHRAGM OPTIONS
PTFE
Santoprene
Buna-N
Hytrel
Viton
Neoprene
VERSATILITY
