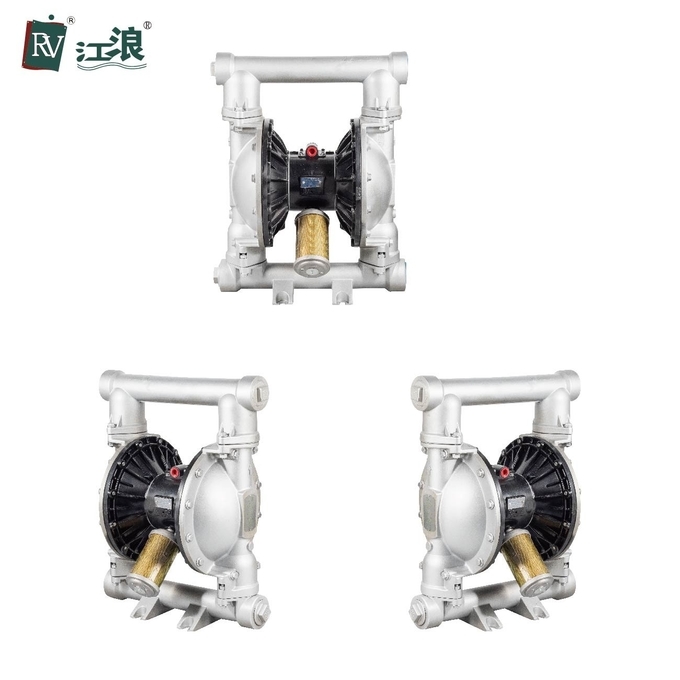

2in stainless steel double diaphragm pump for waste oil Solvent Transfer
Stainless Steel Pump features:
1. High temperature wax casting. Smooth surface and good appearance.
2. Four bolts connection design, good seal and good dry suction.
Parameter
| Max Working Pressure | 120 psi ( 0.84 Mpa, 8.4 bar ) |
| Max Flow Rate | 150 gpm (570 lpm) |
| Max Reciprocating Speed | 145 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.24 in (6mm) |
| Max Air Consumption | 140 scfm ( 70 L/s ) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 2 in. |
| Fluid Outlet Size | 2 in |
Performance Introduction:
RV Stainless Steel diaphragm pump can not only pump fluid liquids and day powders, but also some mediums that usually hard to flow. It possesses the advantages of self-priming pump, submerged pump, shielding pump, slurry pump, impurity pump and other transportation machines.
1. No need to pilot water, suction lift up to 7m, pump head up to 80m, outlet pressure ≥ 0.8 MPa.
2. Spacious flowing way with good through-pass performance, the largest size of particles allowed can be up to 9.4mm. While pumping slurry and impurity, the abrasion is very low.
3. The pump head and capacity can be adjusted via the pressure of air source (between 0.1~0.84 MPa).
4. Temperature range of working environment: 5～65℃
Company Introduction:
Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.
Pneumatic diaphragm pump (AODD) pump are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, pneumatic diaphragm pump AODD pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.
Jianglang Technology Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pneumatic diaphragm pumps, electric diaphragm pumps for a wide range customers.
Jianglang Technology Co., Ltd headquartered in Shanghai, China with 2 production plants and branches.
FAQ
Q1. Can I have a sample order for air operated diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air operated diaphragm order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
