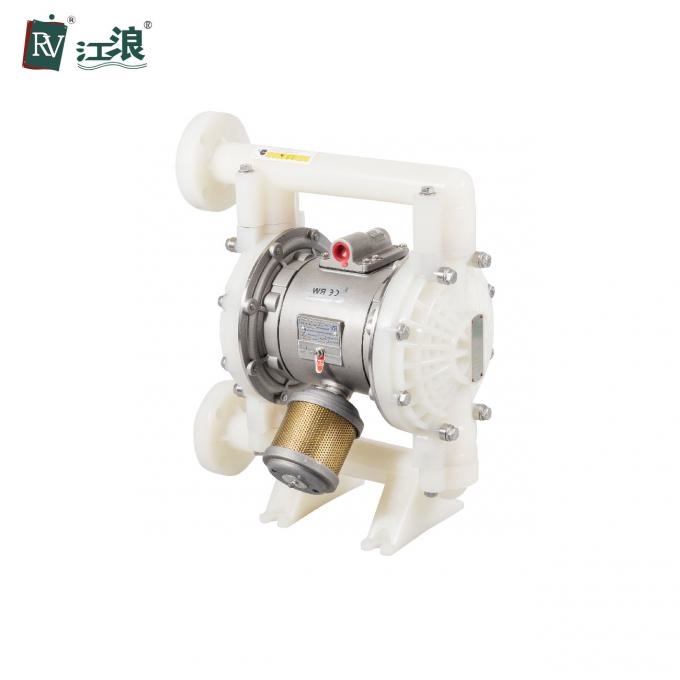

1"inch PVDF (Kynar) Air Operated Diaphragm Pump for Nitric Acid Chemical Insutry
INTRODUCTION
A air operated diaphragm pump (also known as a Membrane pump) is a positive displacement pump that uses a combination of the reciprocating action of a rubber or PTFE diaphragm and suitable valves on either side of the diaphragm (check valve, flap valves, or any other form of shut-off valves) to pump a fluid.
There are three main types of diaphragm pumps:
| Technicial Parameter | Unit | Date |
| Maximum air inlet pressure | Mpa | 0.84 |
| Maximum flow rate | liter per minute | 150 lpm |
| Maximum lift | Meter | 70 m |
| Maximum outlet pressure | Mpa | 0.84 |
| Maximum particle size | mm | 4 |
| weight | kg | 15.7 |
| Noise level | db | ＜ 70 |
Maximum Applied Temperature Limits (Diaphragm/ Ball/ Seal Material)
Acetal ....................................................................40° - 150 ° F (4.4 - 65.5 °C)
Santoprene ........................................................... -40° - 225 ° F (-40 ° - 107.2 °C)
Nitrile ................................................................... 10° -180 ° F ( -12° -82 °C)
Viton.................................................................... -40° -350 ° F ( -40° - 176.6 °C)
Hytrel................................................................... -20° -150° F (-12°- 93 °C)
Kynar...................................................................10° - 200 °F (-28.9° - 65.5 °C)
Polypropylene .....................................................32° - 175 ° F (0-79.4 °C)
