1" Double Diaphragm Pump Paint Sprayer Santoprene Membranes Aluminum

0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.163035
  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

$   337
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 337
Shipping calculated at checkout.
{{Number(packInfo.weight).toFixed(2)}} KG
  • Description
  • 1" Double Diaphragm Pump Paint Sprayer Santoprene Membranes Aluminum

    Diaphragm Paint Pump Treatment Industry

    1.Iding capability,self suction,no comples control.
    2.Bolt joint design provides even sealing pressure for optimal performance.
    3.Diversity of material,no rotating parts,applicable to various erosive situatons.
    4.Diaphragm,ball and ball seat adopt imported materials with longer service life.
    5.Modular air valve for stall-free,low pulsation operation,providing smooth and rapid changeover.
    6.The delivery lift and flow can pass the pneumatic valve open to realize the stepless adiustment.


    Buna N 180°F (82°C)
    Santoprene 180°F (82°C)
    PTFE 212°F (100°C)
    Hytrel 248°F (120°C)
    Viton 248°F (120°C)
    Max Air Consumption 45scfm(22.5L/s)
    Air Inlet Size 1/2 in.npt(f)
    Air Outlet Size 3/4 in.npt(f)
    Fluid Inlet Size 1 in.
    Fluid Outlet Size 1 in.
    Net Weight

    Aluminum 8.2kg

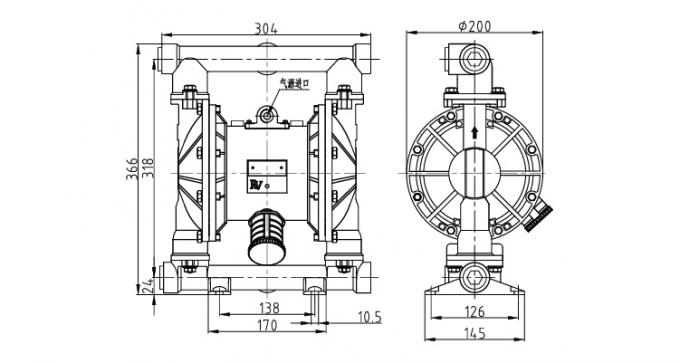

    Exterior dimension drawing

    1" Double Diaphragm Pump Paint Sprayer Santoprene Membranes Aluminum

    Connection type:
    -Threaded connection: Plastic air diaphragm pumps from 1/4" to 1-1/2", and all metal pumps.
    -Fanged connection: Plastic air diaphragm pump from 1/2" to 3".


    Q1. Can I have a sample order for air diaphragm pump?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
    Q2. What about the lead time?
    A: 3-5 days for Sample preparing ,8-10 working days for mass production.
    Q3. Do you have any MOQ limit for air diaphragm order?
    A: Low MOQ, 1pc for sample checking is available.
    Q4. How do you ship the goods and how long does it take to arrive?
    A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
    Q5. How to proceed an order for air diaphragm pump?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

  • Specification
    • Product Name Air Diaphragm Pump
    • Horese power 8.4 bar
    • Pressure Low Pressure
    • Ourlet Size 1"inch
    • Maximum Reciprocating Speed 276 cpm
    • Certificateion ISO 9001 , CE , ATex
    • Valve Ball Santoprene
    • Diaphragm Santoprene
    • Weight 9.5 kg
    • Package 39.00cm*23.00cm*52.00cm
